TWISTMax 7 Basic-Spring return
Brand: TWISTMax
Family: TWISTMax 7
Part Description:TWISTMax 7 Basic-Spring return
Part Number: 618-00006
MATERIAL: 304L
Dimensions:

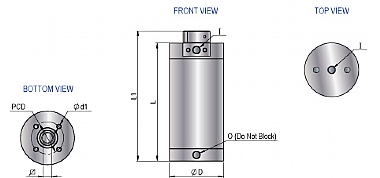

| MODEL | L | L1 | øD | ؆ | øPCD | øPCD2 | ød1 | ød2 | Aº [DEG] | ISO 5211 FLANGE TYPE |
AIR CONNECTION SIZE | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| MM | IN | MM | IN | MM | IN | MM | IN | MM | IN | MM | IN | I | O | ||||||
| TMX 7 | B | 136 | 5.4 | 70 | 2.8 | 11 | .4 | 42 | 1.7 | M6 | º | F04 | ⅛ | ⅛ | |||||
B - Basic
A - Advanced
Operating pressure:
SR 5-8 Bar
Operating Temperature:
-10°C to 60°C
*For TWISTMax actuators wider temperature range please contact EGMO representative
| Actuator Type | SR | |
|---|---|---|
| Unit | KG | Lb |
| Weight | 1.8 | 4 |
| Actuator Type | SR |
|---|---|
| Unit | Sec |
| Cycle Time | .8 |
| Actuator Type | SR | |
|---|---|---|
| Unit | cc | in3 |
| Air Consumption CCW | 143.2 | 8.7 |
| Air Consumption CW | 0 | 0 |
| Air Consumption CCW | 143.2 | 8.7 |
TWISTMAX BASIC SERIES
The TWISTMax Actuator Basic series with its economical design combines an air pressure inlet on top of the actuator. It also can be supplied with a position indicator on the bottom of the actuator and proximity switch. It is available in both double acting as well as spring return types.
The TWISTMax Actuator Basic series with its economical design combines an air pressure inlet on top of the actuator. It also can be supplied with a position indicator on the bottom of the actuator and proximity switch. It is available in both double acting as well as spring return types.

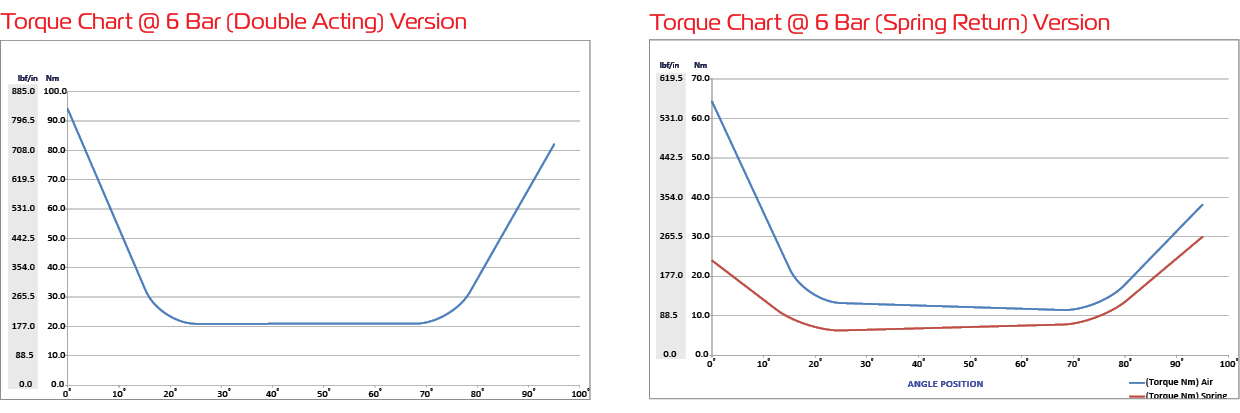

Torque Values:
| Pressure bar | Units | 5 | 6 | 7 | 8 | Spring | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Actuator Type | Start | Middle | End | Start | Middle | End | Start | Middle | End | Start | Middle | End | Start | Middle | End | |
| TMX 7 | Nm | 46.8 | 7.5 | 27.7 | 64.3 | 11.2 | 38.2 | 81.8 | 14.8 | 48.6 | 99.2 | 18.5 | 59.1 | 27 | 7 | 20 |
| lb in | 5.3 | .8 | 3.1 | 7.3 | 1.3 | 4.3 | 9.2 | 1.7 | 5.5 | 11.2 | 2.1 | 6.7 | 3.1 | .8 | 2.3 | |
THESE PRODUCTS REQUIRE YOU TO CONSULT WITH EGMO REPRESENTATIVE PRIOR TO ORDERING
Due to the variety of operating conditions and applications for these products, the system designer and user have the sole responsibility for selecting products suitable for their special application requirements, ensuring their safe and trouble-free installation, operation, and maintenance. Application details, material compatibility and product ratings should all be considered for each selected product. Improper selection, installation or use of products can cause property damage or personal injury
Due to the variety of operating conditions and applications for these products, the system designer and user have the sole responsibility for selecting products suitable for their special application requirements, ensuring their safe and trouble-free installation, operation, and maintenance. Application details, material compatibility and product ratings should all be considered for each selected product. Improper selection, installation or use of products can cause property damage or personal injury
